• Air conditioning, single-zone manual front climate control
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) SiriusXM Satellite Radio.)
• Coat hooks, rear driver and passenger side
• Cruise control, electronic with set and resume speed, located on steering wheel
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models. Rear cupholders are not included with (AE7) front 40/20/40 split-bench seat.)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Mirror, inside rearview manual day/night
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• SiriusXM Satellite Radio, delete
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on

• Air cleaner, high-capacity
• Alternator, 125 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust aluminized stainless-steel muffler and tailpipe
• Frame, fully-boxed, hydroformed front section
• Rear axle, 3.73 ratio
• Rear wheel drive
• Steering, power, recirculating ball
• Suspension, rear 4+1 multi-leaf springs

• Daytime Running Lamps with automatic exterior lamp control
• OnStar, delete
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Tire Pressure Monitor System (does not apply to spare tire)

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE, FLEXFUEL

• capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

• LICENSE PLATE FRONT MOUNTING PACKAGE
• DARK TITANIUM CLOTH SEAT TRIM

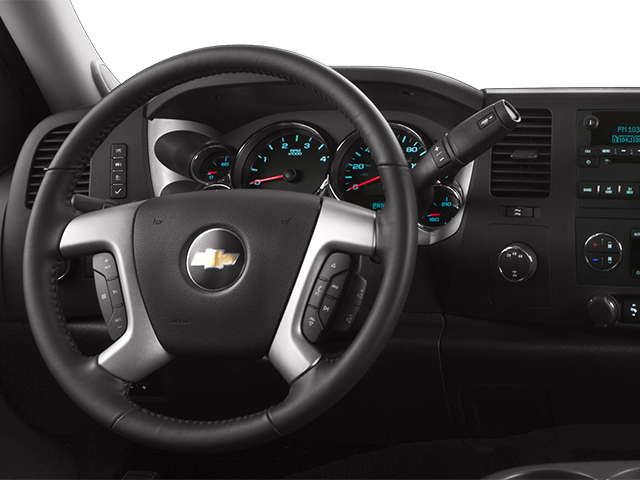

• STEERING WHEEL CONTROLS MOUNTED AUDIO CONTROLS
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 3.73 RATIO
• WORK TRUCK PREFERRED EQUIPMENT GROUP includes standard equipment

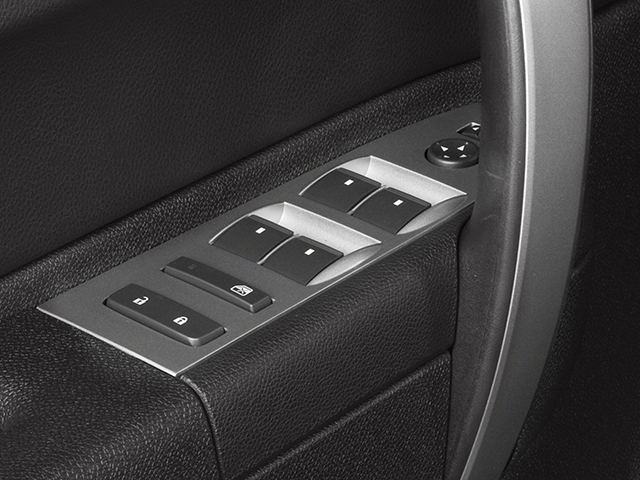

• WINDOWS LOCKS AND MIRRORS POWER WITH UPLEVEL DOOR PANELS ON A BASE TRIM LEVEL VEHICLE Provides power driver and passenger front side windows with uplevel door panels on a base trim level vehicle. Includes RPO (DL8) outside heated power-adjustable manual folding mirrors RPO (AU3) power door locks and RPO (UQ3) speaker system. C/K***43-53 models include rear door power windows and locks.
• MIRRORS CAMPER POWER-ADJUSTABLE GLASS MANUAL EXTENDABLE HEATED Alternative mirrors replacing mirrors that are standard with SEO (5B5) power windows locks and mirrors on a base decor truck. Provides RPO (DPN) outside heated power-adjustable manual folding manual extendable vertical camper mirrors consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface within a common head. Includes turn signals in mirror glass
• SEAT ADJUSTER MANUAL LUMBAR CONTROL ON THE DRIVER-SIDE
• SUSPENSION PACKAGE HANDLING/TRAILERING HEAVY-DUTY includes 35mm twin tube shock absorbers and 36mm front stabilizer bar (STD)
• GVWR 9500 LBS. (4309 KG)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

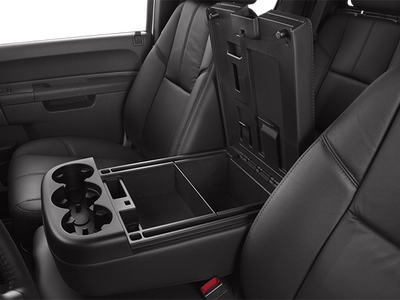

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER DRIVER AND FRONT PASSENGER MANUAL RECLINING with outboard head restraints and center fold-down armrest with storage (STD)
• PAINT SOLID
• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab Models includes rear window. With Extended Cab Models includes rear and rear quarter windows. With Crew Cab Models or (C49) rear-window defogger includes light-tinted rear window.)
• ONSTAR 6 MONTHS OF DIRECTIONS AND CONNECTIONS PLAN includes Automatic Crash Response Emergency Services Crisis Assist First Assist Injury Severity Predictor Stolen Vehicle Assistance Stolen Vehicle Slowdown Remote Ignition Block Remote Door Unlock (requires power locks) Roadside Assistance Remote Horn and Lights Turn-by-Turn Navigation with OnStar eNav Destination Download (requires navigation radio) OnStar Vehicle Diagnostics Hands Free Calling and available OnStar RemoteLink mobile app.
• DOOR LOCKS POWER includes Remote Keyless Entry
• WHEELS 17" (43.2 CM) STEEL (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. (STD)
• TRAILERING EQUIPMENT HEAVY-DUTY includes trailering hitch platform and 2.5- inch receiver with 2" adapter 7-wire harness (harness includes wires for: park lamps backup lamps right turn left turn electric brake lead battery and ground) with independent fused trailering circuits mated to a 7-way sealed connector wiring harness for after-market trailer brake controller (located in the instrument panel harness) and (JL1) integrated trailer brake controller
• Bluetooth® FOR PHONE personal cell phone connectivity to vehicle audio system
• REMOTE KEYLESS ENTRY with 2 transmitters and panic button.
• SUMMIT WHITE
• TIRES LT245/75R17E ALL-SEASON BLACKWALL (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)
• STEERING WHEEL LEATHER-WRAPPED with theft-deterrent locking feature
• DIFFERENTIAL HEAVY-DUTY AUTOMATIC LOCKING REAR

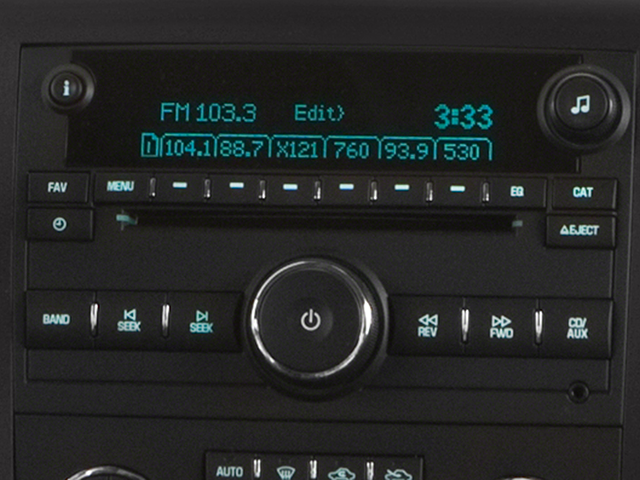

• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume and TheftLock
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Tires - Front All-Season
• Tires - Rear All-Season
• Tow Hooks
• Automatic Headlights
• Intermittent Wipers
• AM/FM Stereo
• Split Bench Seat

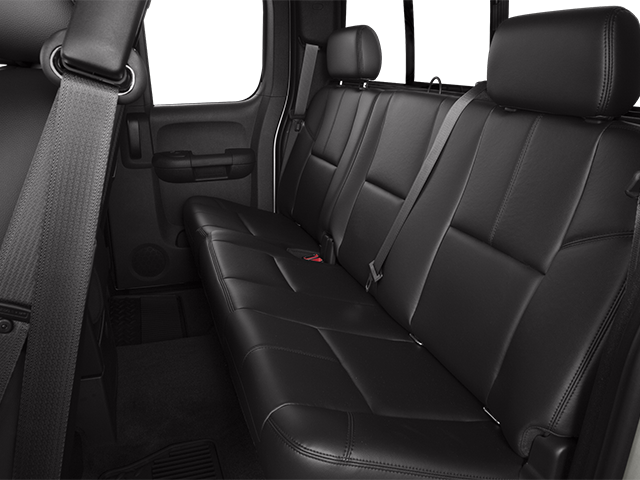

• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Tire Pressure Monitor

• Brakes
• Brake ABS System: 4-Wheel
• Brake Type: Pwr
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Cargo Area Dimensions
• Cargo Box (Area) Height (in): 21.00
• Cargo Box Length : Floor (in)
• Cargo Box Width : Floor (in)
• Cargo Box Width : Top, Rear (in)
• Cargo Box Width : Wheelhousings (in)
• Cargo Volume (ft³): 60.7
• Tailgate Width (in): 61.60
• Electrical
• Cold Cranking Amps : 0° F (2nd)
• Cold Cranking Amps : 0° F (Primary)
• Maximum Alternator Capacity (amps): 125
• Emissions
• Tons/yr of CO2 Emissions : 15K mi/year
• Exterior Dimensions
• Cab to Axle (in): 41.60
• Front Bumper to Back of Cab (in): 141.40
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.60
• Ground to Top of Load Floor (in): 38.20
• Height, Overall (in): 77.90
• Length, Overall w/o rear bumper (in): 230.60
• Overhang, Front (in): 38.80
• Overhang, Rear w/o bumper (in): 52.60
• Wheelbase (in): 144.20
• Width, Max w/o mirrors (in): 80.00
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Interior Dimensions
• Front Head Room (in): 41.10
• Front Hip Room (in): 60.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Passenger Capacity: 6
• Second Head Room (in): 39.50
• Second Hip Room (in): 61.80
• Second Leg Room (in): 34.40
• Second Shoulder Room (in): 65.30
• Steering
• Steering Ratio (:1), On Center: 24.0
• Steering Type: Pwr
• Turning Diameter - Curb to Curb (ft): 47.9
• Turning Diameter - Wall to Wall (ft): N/A
• Summary
• Body Code: E63
• Body Style: Extended Cab Pickup
• Vehicle Name: Chevrolet Silverado 2500HD
• Suspension
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Stabilizer Bar Diameter - Front (in): 1.31
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Tires
• Front Tire Order Code: QHQ
• Front Tire Size: LT245/75R17
• Rear Tire Capacity (lbs): 3195
• Rear Tire Order Code: QHQ
• Rear Tire Size: LT245/75R17
• Revolutions/Mile : 45 mph - Front
• Revolutions/Mile : 45 mph - Rear
• Revolutions/Mile : 45 mph - Spare
• Trailering
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2450
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9800
• Maximum Trailering Capacity (lbs): 17500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1470
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9800
• Weight Information
• Curb Weight - Front (lbs): 3352
• Curb Weight - Rear (lbs): 2655
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Gross Combined Wt Rating (lbs): 16000
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Wheels
• Front Wheel Material: Steel
• Front Wheel Size (in): 17 x
• Rear Wheel Material: Steel
• Rear Wheel Size (in): 17 x
• Spare Wheel Material: Steel
• Spare Wheel Size (in): 17 x 7.5
